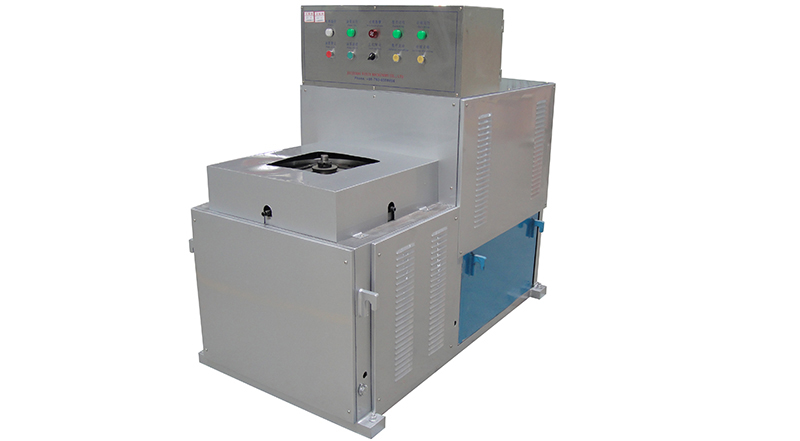

YX-18LF square jars body flanging machine

一．Function

Flanging die of redesign cans ensure the compactness of sealing tank and the R-angle to reach the designated breaking and bending because of its R-angles without groove mark. It is mainly used in the flanging of 5-gallon (18L) square can

二．Major Technical References：

Scope of application: 9-20L big square cans (Require changing molds)

Maximum oil pressure: 12Mpa

Adaptive material thickness: 0.2-0.4mm

Volume of oil tank: 125L

Capacity: 15-20cans per minute

Outline size: 1300×700×1100mm

Power of motor: 5HP

Overall weight: 450kg

Applied electric source: AC380V 50HZ

Price：22000¥
